HZ140 Bag Making Machine

Intelligent: Multi-spindle synchronous control, auto bag specification adjusting without pulling the gears.Simple: 4 sets HMI with intuitive dynamic interface, easy operation and efficient, waster fre...

Description

Parameters

Video

Intelligent: Multi-spindle synchronous control, auto bag specification adjusting without pulling the gears.

Simple: 4 sets HMI with intuitive dynamic interface, easy operation and efficient, waster free.

Convenient: real-time monitoring of production status by mobile APP, without manual registration.

High speed: The speed can reach 110-140 pcs/min.

Stable: thick cast iron base ensures the stability of high-speed operation with low waste rete.

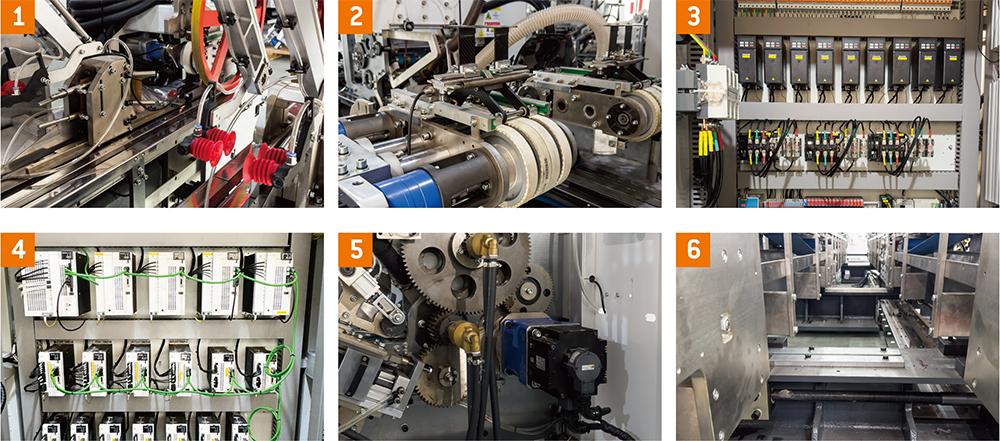

Partial introduction

1. Horseshoe type bag opening mechanism

2. Telescopic Triangle Forming Mechanism

3. UK TRIO motion control system

4. 26 Axis Bus Servo

5. Independent servo board replacement system

6. High strength cast iron base

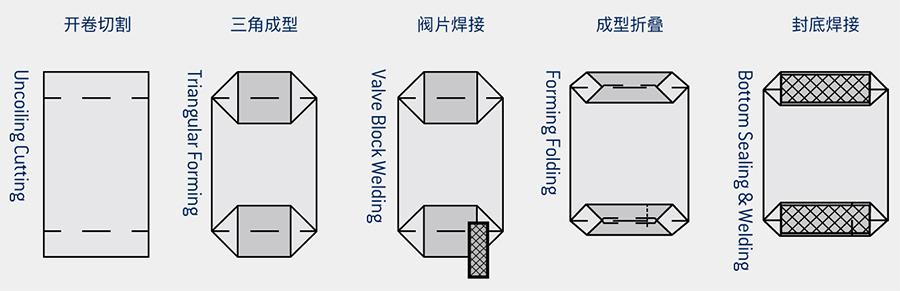

Bag forming process

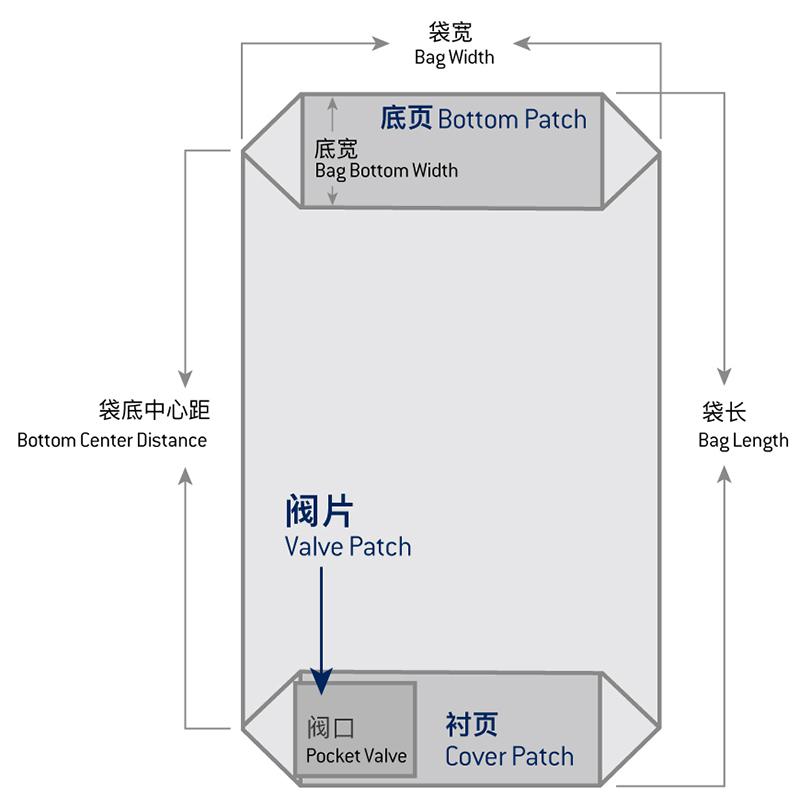

SIZE RANGE

Bag Width320-600mm
Bag Length430-910mm
Bag Bottom Width80-180mm Only applicable to PP Woven bags with single side opening
Bottom Center Distance350-750mm
PP Woven Sheet Length530-1200mm Only applicable to PP Woven bags with single side opening


VALVE PORT TYPE
Inner valve port, outer valve port, folding valve port, extension valve port, left valve port, right valve port.


VALVE PATCH SIZE RANGE

Cutting Length80-200MM
Outer Valve Opening Cutting Length80-300MM
Width170-335MM


COVER & BOTTOM PATCH SIZE RANGE

Cutting Length200-560MM
Width75-175MM


OVERALL DIMENSION

Overall Dimension: 12m(L)×8m(W)×3m(H) Machine Weight:18000Kgs
Power Supply: 380V 50HZ Phase 5 Wire
Rated Power: 140kw(120pcs/min, Running Power 65kw)
Air Pressure: 0.7mpa 120m3/h
Water Supply: 0.4mpa 1m3/h
Production Speed: 110-140Pcs/min
Air Gun With Independent Transformer 90kw
Welding Method:high Temperature Gun Welding(Max. Temperature 750°c)
Servo Motor Brand: Latest Japan PANASONIC(Bus Communication Mode)
Inverter brand: Japan PANASONIC
Control System: UK TRIO Motion Controller
Joint Control Of Multi Touch Screen, Mobile App Monitoring Production System
Intelligent Specification Change System(Fast Specification Adjustment)
