MODEL 23 Fully automatic high speed non woven box bag making machine

BOTTOM STICKER SPECIFICATION RANGE

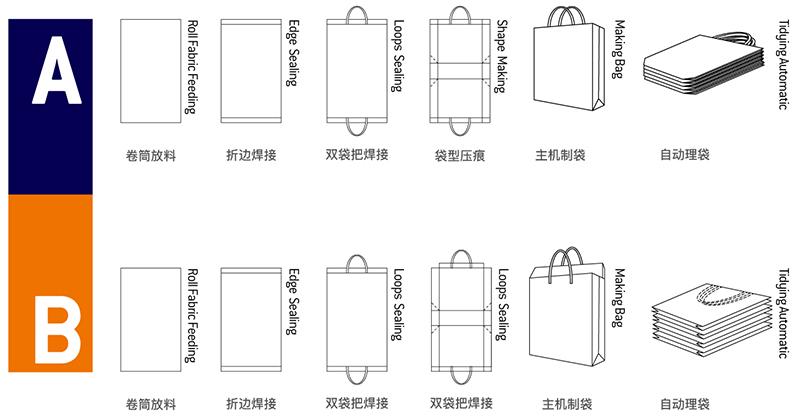

BAG TYPEDual use insulated bag and three-dimensional bag
BOTTOM SUPPORT METHODVacuumadsorption system(without bottom support)
COLOR CODETRACKINGHandheld color codes and knife color codes
BAG MOUTH CORRECTIONInnovative dynamic detection and correction
CONTROL SYSTEMUK Cui Ou motion controller
MAN-MACHINE INTERFACEFul guided screen
CONTROL MODEWhole machine EtherCAT bus control
REMOTE MODULEMobile app interconnection
APPLICABLE RAW MATERIALSNon wven fabric,coated non-woven fatric,cxoated woven  material
MATERIAL THICKNESS65-120g/m2
SPEED70-120 pic/min
BAG HEIGHTHeight 180-450mm
BAG FRONT WIDTHWidth Standard 180-540mm: small 100-480frn
BAG SIDE WIDTHGusset 80-220mrn
FEED WIDTH550-1160mm
LOOP LENGTHHandle 320-620 mm
MAXIMUM UNWINDING DIAMETERThe diameter of the roll material at the feeding  position is 1.30 meters
MOLD CHANGE TIME20-40min
AIR PRESSURE REQUIREMENTS1.2m3/min(air compressor above 7.5kwl)
INSTALLED POWER65kw
PRODUCTION POWER:15kw

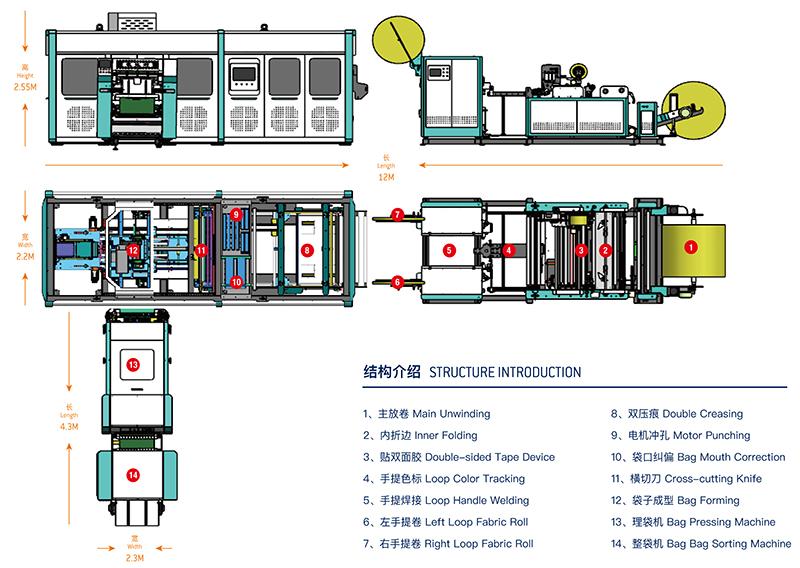

MACHINE DIMENSIONSL12 W 2.2 H2.6
MACHINE WEIGHT10000KG
