HZK140 Heat sealing square bottom open pocket bag making machine

HZK140 Heat sealing square bottom open pocket bag making machine

Description

Parameters

Video

HZK140 Heat sealing square bottom open pocket bag making machine

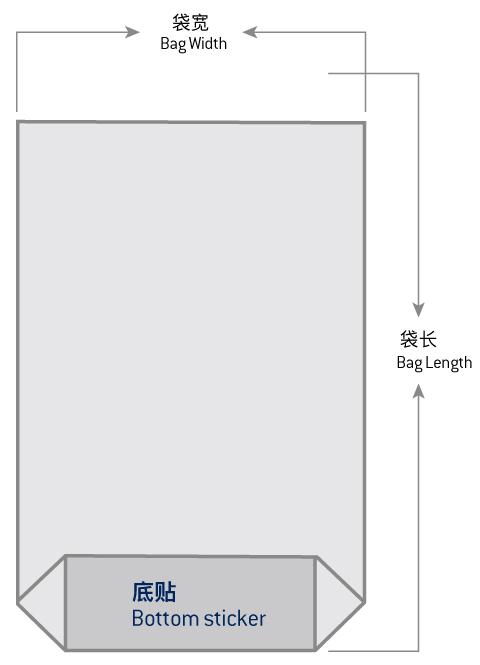

BOTTOM STICKER SPECIFICATION RANGE

Cutting Length200-560MM
Width75-175MM

MACHINE PARAMETERS

0verall Dimension: 12m(L)X8m{W)X3m (H)Machine Weight: 14000kgs
Power Supply: 380V 50HZ 3 Phase 5 Wire
Rated Power: 90kw[120pcs/min, Running Power 40kw)Air Pressure: 0.7mpa  120m3/h
Water Supply: 0.4mpa 1m3/h
Production Speed: 110-140 Pcs/min
Air Gun With independent Transformer 90kw
Welding Method: High Temperature Gun Welding (Max.  Temperature 750 ℃ )
Seryo Motor Brand: latest Japan PANASONIC (Bus Communication Mode)
Inverter brand: Japan PANASONIC
Control System: UK TRl0 Motion Controller
Joint Control Of Multi Touch Screen, Mobile App Monitoring  Production SystemInte
lligent Specification Change System[Fast Specification Adjustment]
